Tutorial - build your first web OPI¶

This section will guide you through creating your first OPI using WEISS.

Note

Optional: For a full experience, it is recommended that you follow this tutorial in a local instance of WEISS, with the proper Git credentials configured, so you can push to remote repos directly from the user interface.

If you don’t want to do this now, you can still follow along with the public demo, but you will not be able to push your changes from UI or use private repositories.

Start a new project¶

Create a new repository on your preferred git hosting service (GitHub, GitLab, etc.), and put it into a namespace where your Git settings have access to (if applicable). Make sure to add at least one file to it, e.g. a README.md or .gitignore, so it is not empty.

Tip

Alternatively, you can create a fork of weiss-demo-opis to use as a playground.

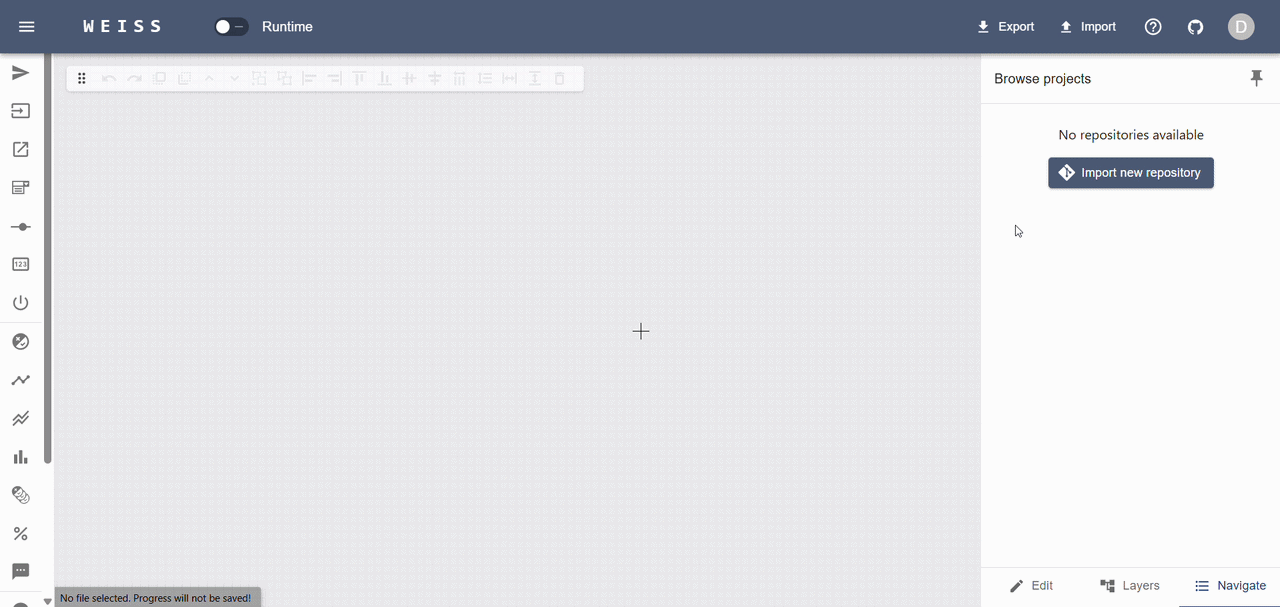

With WEISS app running, login as a “Developer” and click on the “Import new repository” button in the right sidebar of the “Navigate” tab. Provide the repository’s HTTPS URL and an alias for it, then click “Import”.

Import repository animation

Create a new OPI¶

Once the repository is imported, you can see its content in the file browser (if any). Note that not all file types will be visible, so you may see an empty repository even if it is not. The file types supported by WEISS are:

OPI files - files with the .opi.json extension.
Image files - files with the .svg, .png, .jpg, or .jpeg extension.

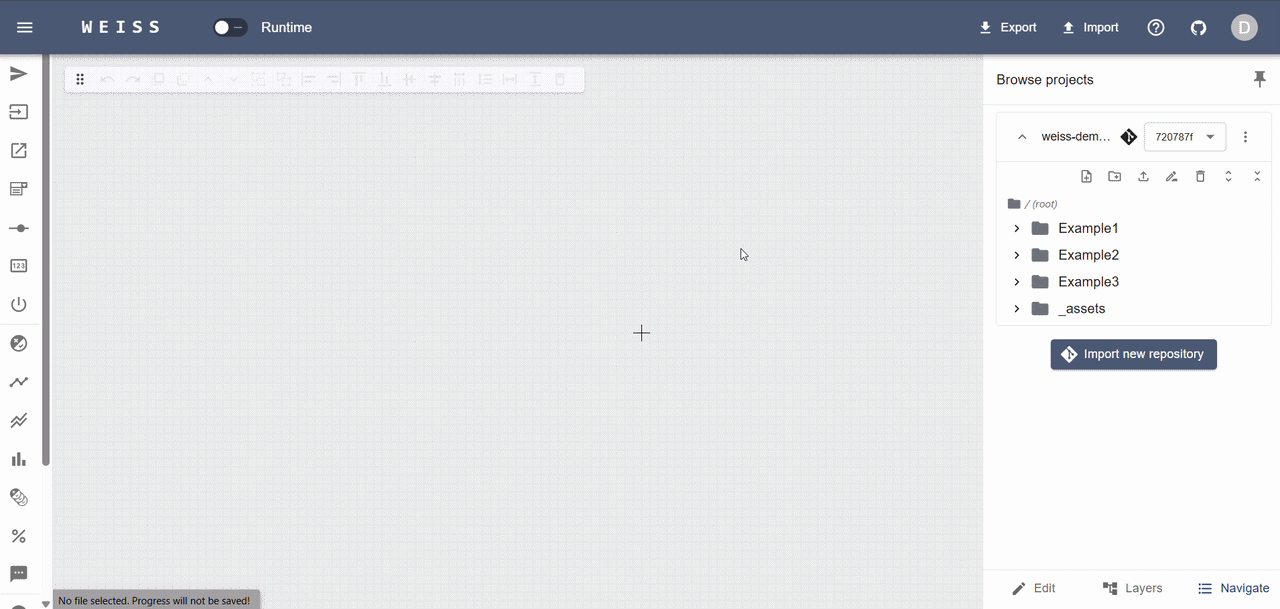

Create your new OPI file by clicking “New File” on the navigator sidebar and providing a name when prompted. You may also create subfolders to organize your content, and reorganize items by drag and drop. The supported file extension for OPI files is .opi.json, but you can omit it when creating a new file, as WEISS will automatically append it if missing.

Create file animation

Note

As part of the git-oriented system, WEISS will highlight the new file name with green. Modified files will be highlighted in yellow.

Design your OPI¶

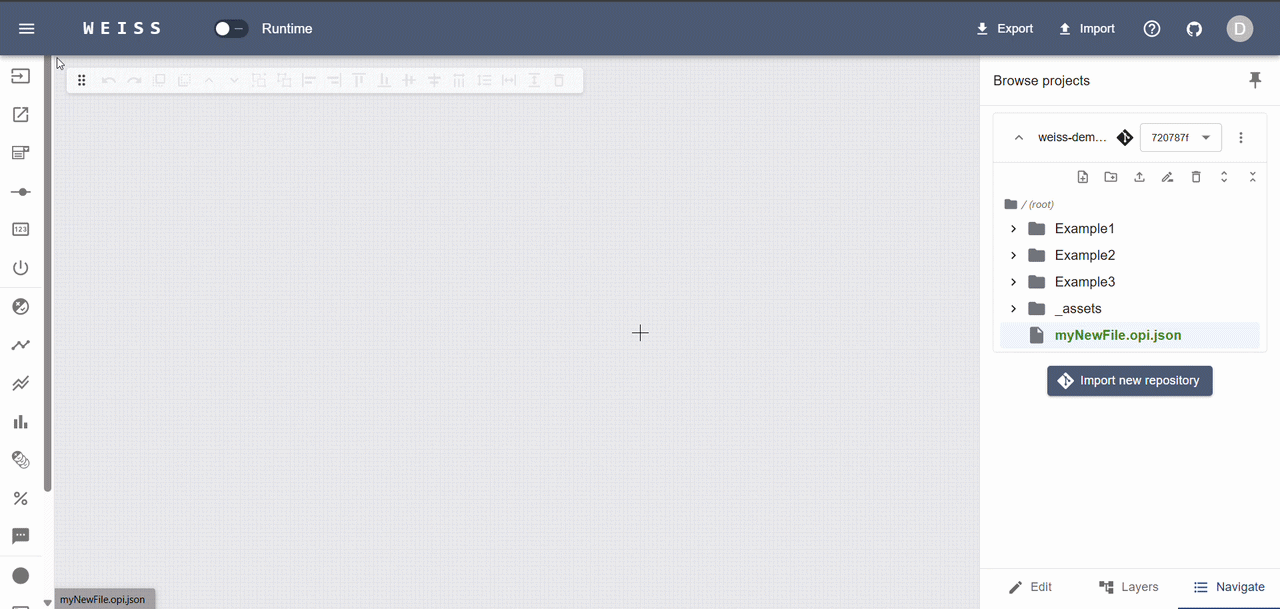

Open the newly created OPI file by clicking on it in the file browser. You will be presented with a blank canvas where you can start designing your interface. Start by adding a widget from the left sidebar. You can either drag and drop it onto the canvas, or click on it to add it where the mouse pointer is. You can move, resize, and configure the widget using the right sidebar.

Tools for alignment, grouping, resizing and layering are available in the floating toolbar at the top of the canvas, or with the right-click menu. You can also use keyboard shortcuts for common actions (see help icon on the upper-right side of the app header).

Create PV connections¶

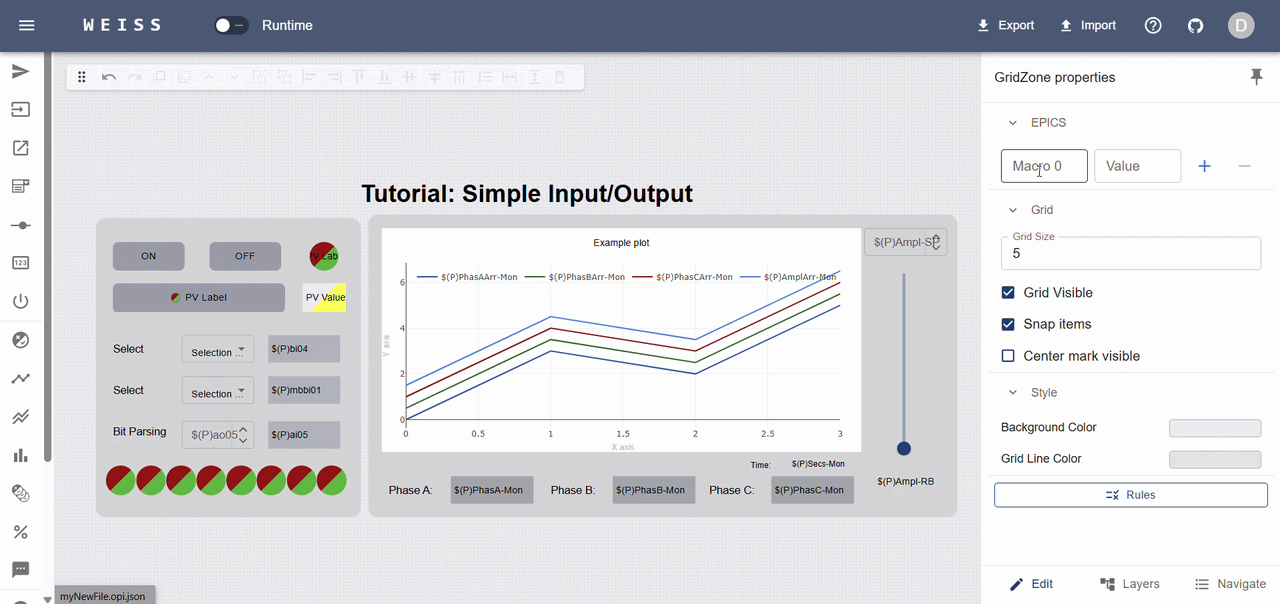

Configure your OPI macros (if any) by clicking on an empty space in the canvas. The right sidebar will show the “GridZone” properties, such as the macros, grid size, snapping, background color, etc. Make sure to set the PV names of your widgets as well, according to the IOC you have running. For the demonstration OPIs, the IOCs can be found in weiss-demo-iocs.

Add pv names

Test it¶

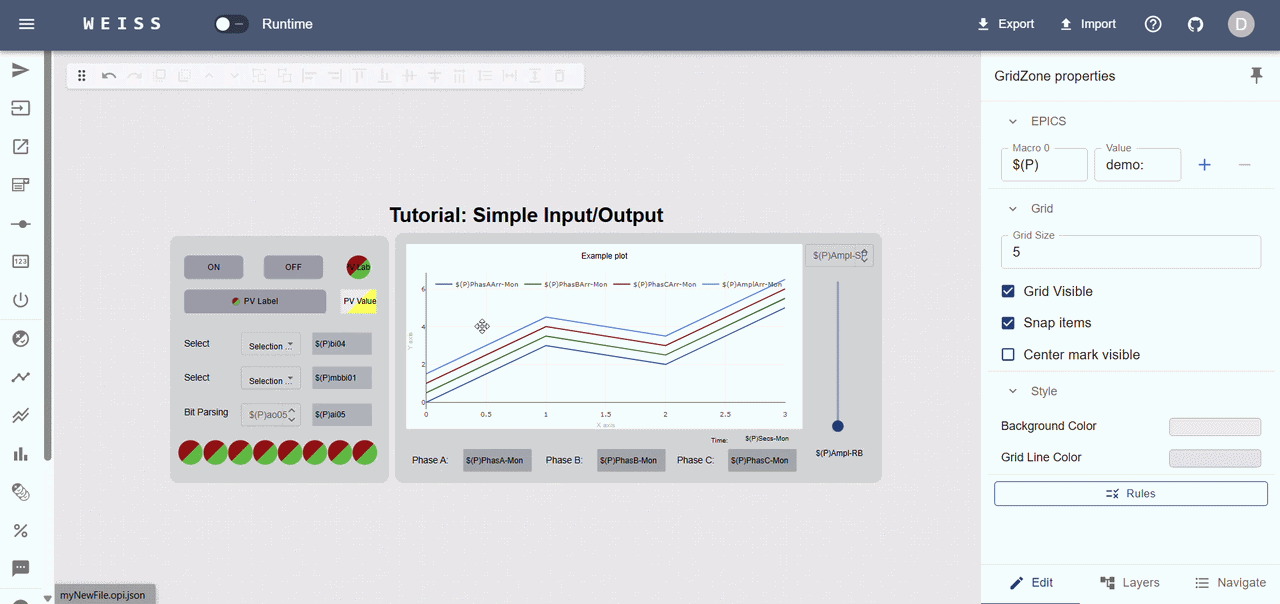

For testing connection and functionality, hit the “Runtime” switch. The app will instantly open a connection to the PVs and start updating the widgets accordingly.

Testing runtime

Hint

If your PVs are not connecting, check if your IOC can be seen from the server running WEISS. You may need to update the EPICS_XXX_ADDR_LIST environment variables in your .env file to include the IOC’s address or appropriate gateway.
If change is needed, update the variables then update the containers with docker compose up -d --build. The local volume will persist your repository files, so you won’t lose your work in progress.

Commit & push your changes¶

This step is only possible if you have completed the Git credentials setup and your PAT has write access to the repository you are working on.

If you are happy with your changes, you can create a new commit by clicking the “Commit” button in the repository additional options menu. Provide a commit message, optionally a tag, and click “Commit”. The commit will be created and pushed to the upstream repository.

After seeing the successful message, you can click the dropdown close to the repository alias, and see that the repository history is now updated.

Commit

Besides committing, you can also revert local changes or fetch the latest changes from upstream. These options are available in the same menu.

Warning

To keep things simple, WEISS does not support branching or conflict resolution in the UI. If conflicts arise, a notification will be shown, and you will need to resolve it manually by cloning the repository and pushing afterwards.
To avoid this, it is a good practice to always pull the latest changes before starting to work, and avoid working on the same file in parallel with other developers.

Deploy to users!¶

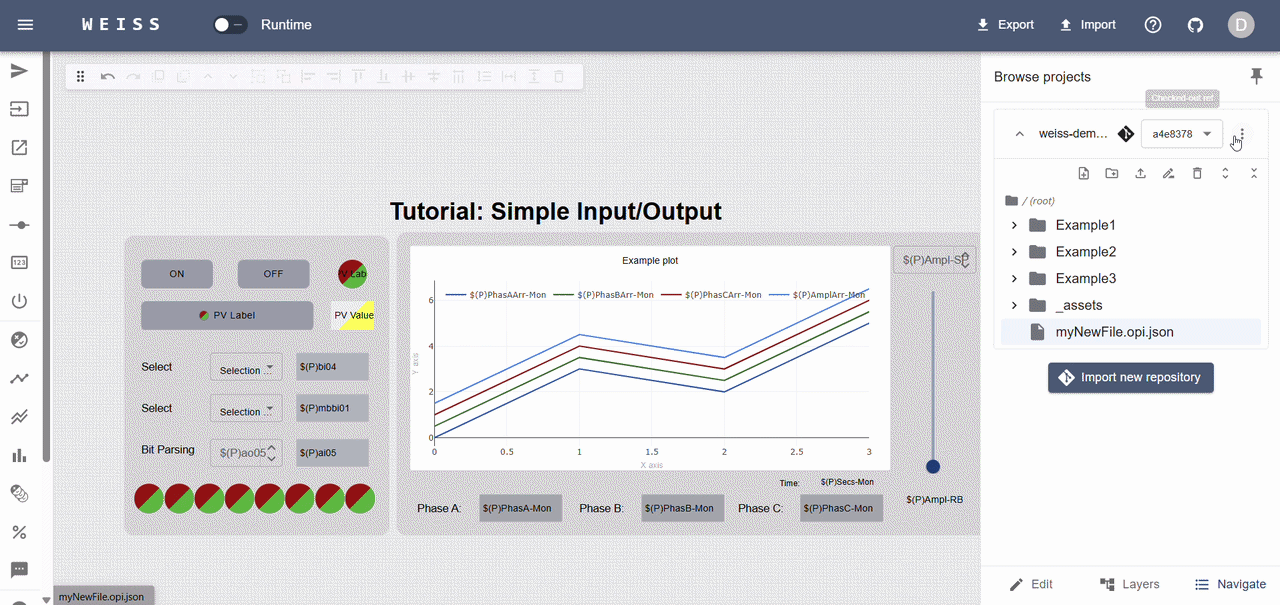

After committing your changes, you can select the commit or tag you want to deploy to production, and click “Deploy” on the same menu. WEISS will create a snapshot of the repository at that commit and make it available to all users with the “Operator” role.

To verify that it works, if running on “Demo” mode, you can logout and login as an “Operator” to see the deployed repository available for usage. Alternatively, you can open a new browser window in incognito mode and access the app with an “Operator” user simultaneously.

Deploy
